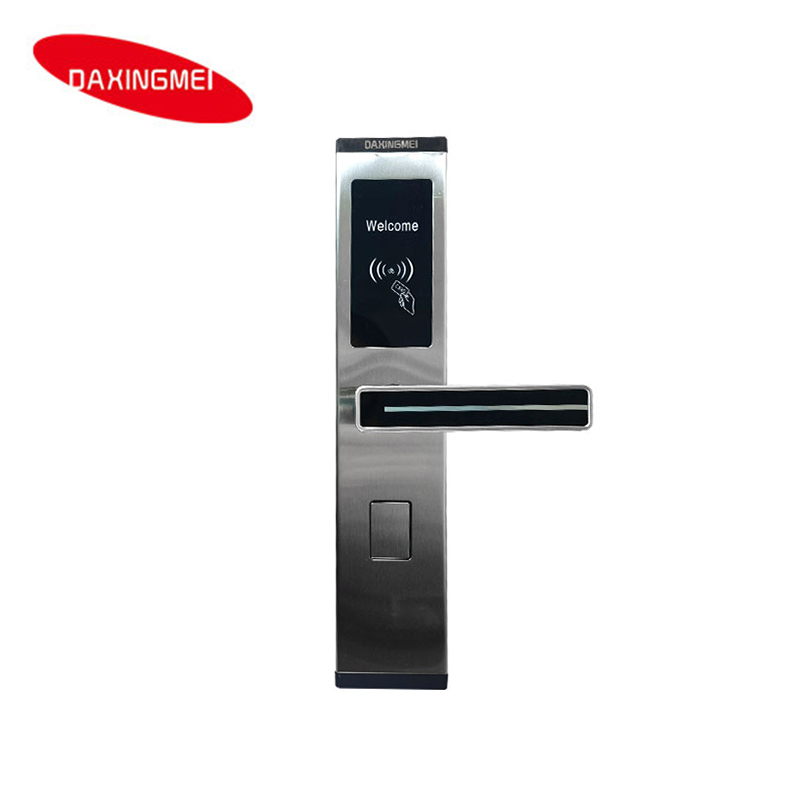

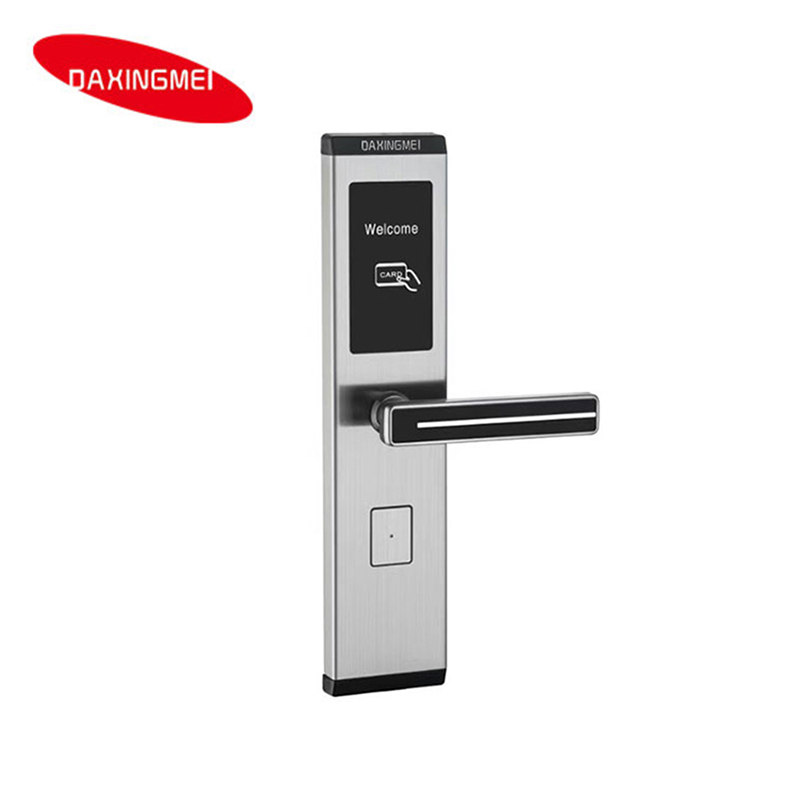

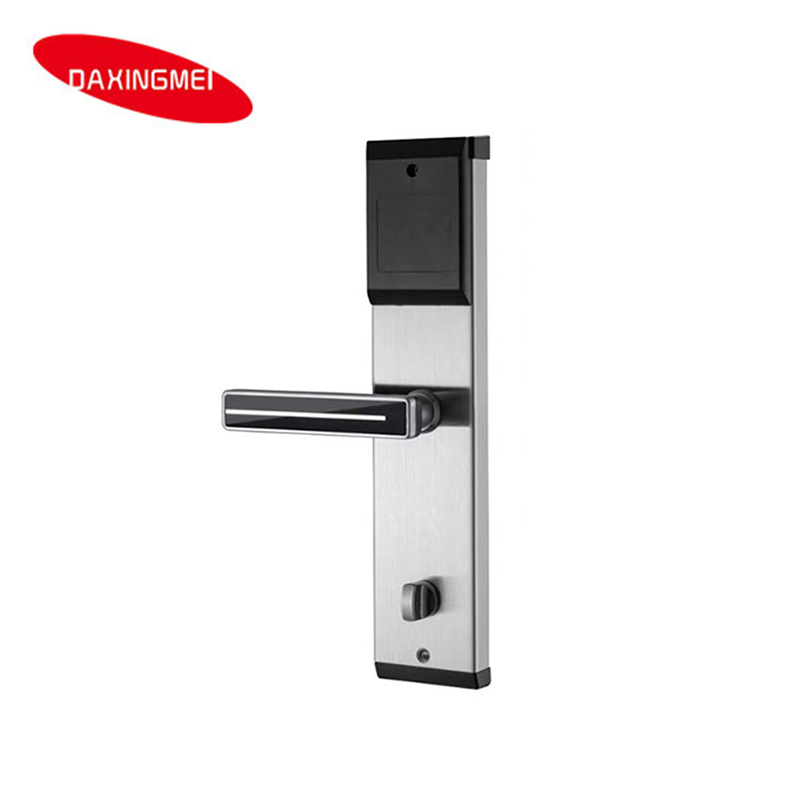

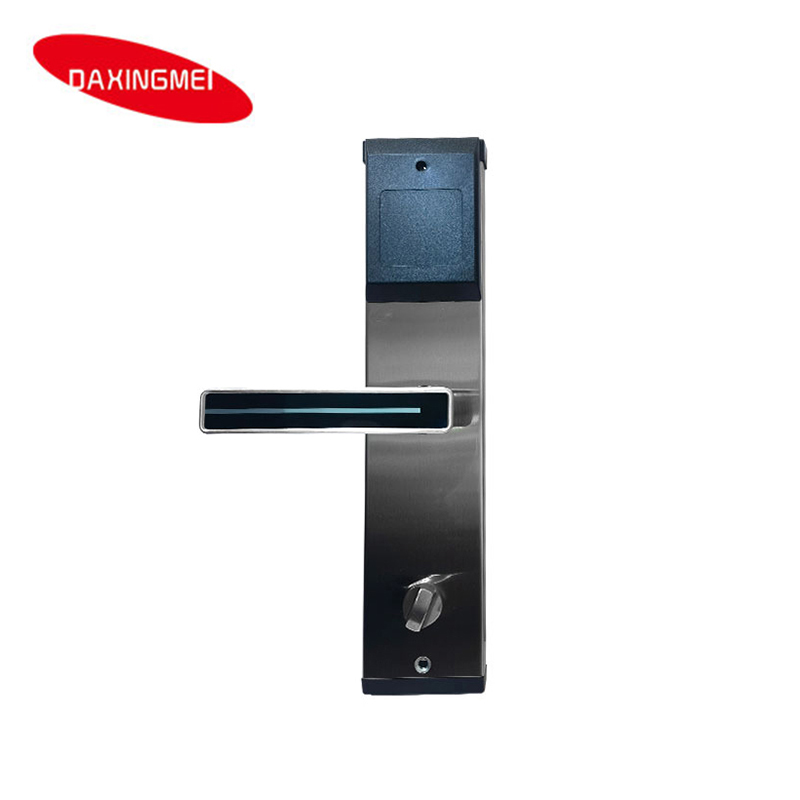

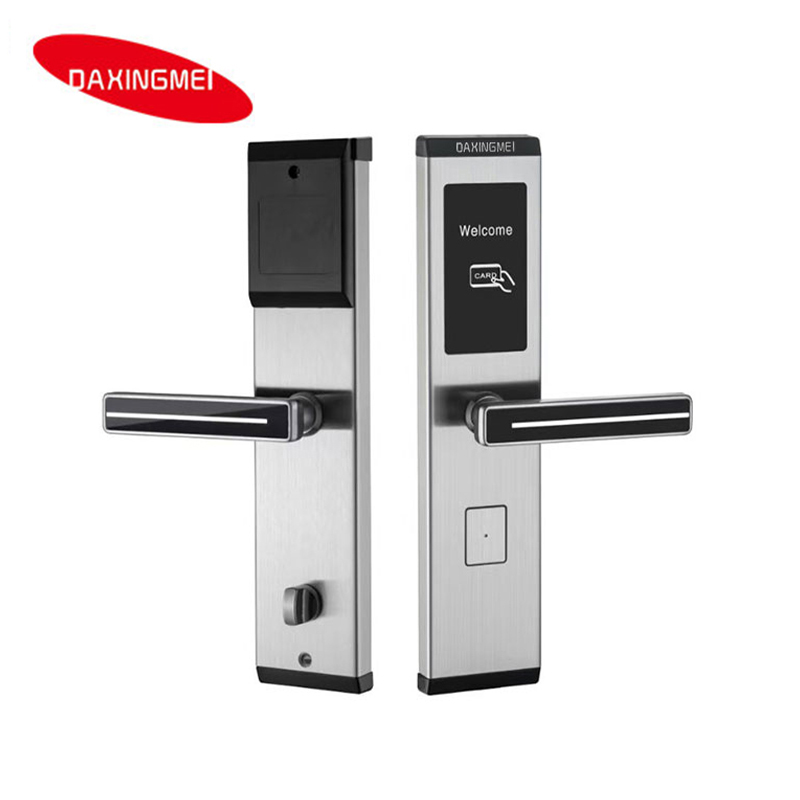

Smart Door Lock (Smart Electronic Door Lock)

Management mode

Implement hierarchical authority management through hotel door lock management software

Unlocking method

T57, M1, spare mechanical key

Opening time

Press the handle once to be effective. If there is no action, it will automatically lock after a delay of 6 seconds

Unlocking record

1000 unlocking records (optional data acquisition instrument to query records)

False lock alarm

When the door is not closed properly (ajar state), the door lock will sound an alarm after 5 seconds

Material

Stainless steel

Door lock power supply

DC6V (4 1.5V No. 5 alkaline batteries)

Battery life

About 5000 times

Low power prompt

Working voltage is lower than 4.5V, and the door lock will sound an alarm each time the door is opened

Low voltage operation

Even if the alarm sound appears, it can still be unlocked for about 50 times

Dynamic power consumption

Less than 200mA

Static power consumption

Less than 30 microamperes

Operating temperature

-25 degrees -70 degrees

Relative temperature

40～80%RH

Adaptable door thickness

40-55mm
